Description

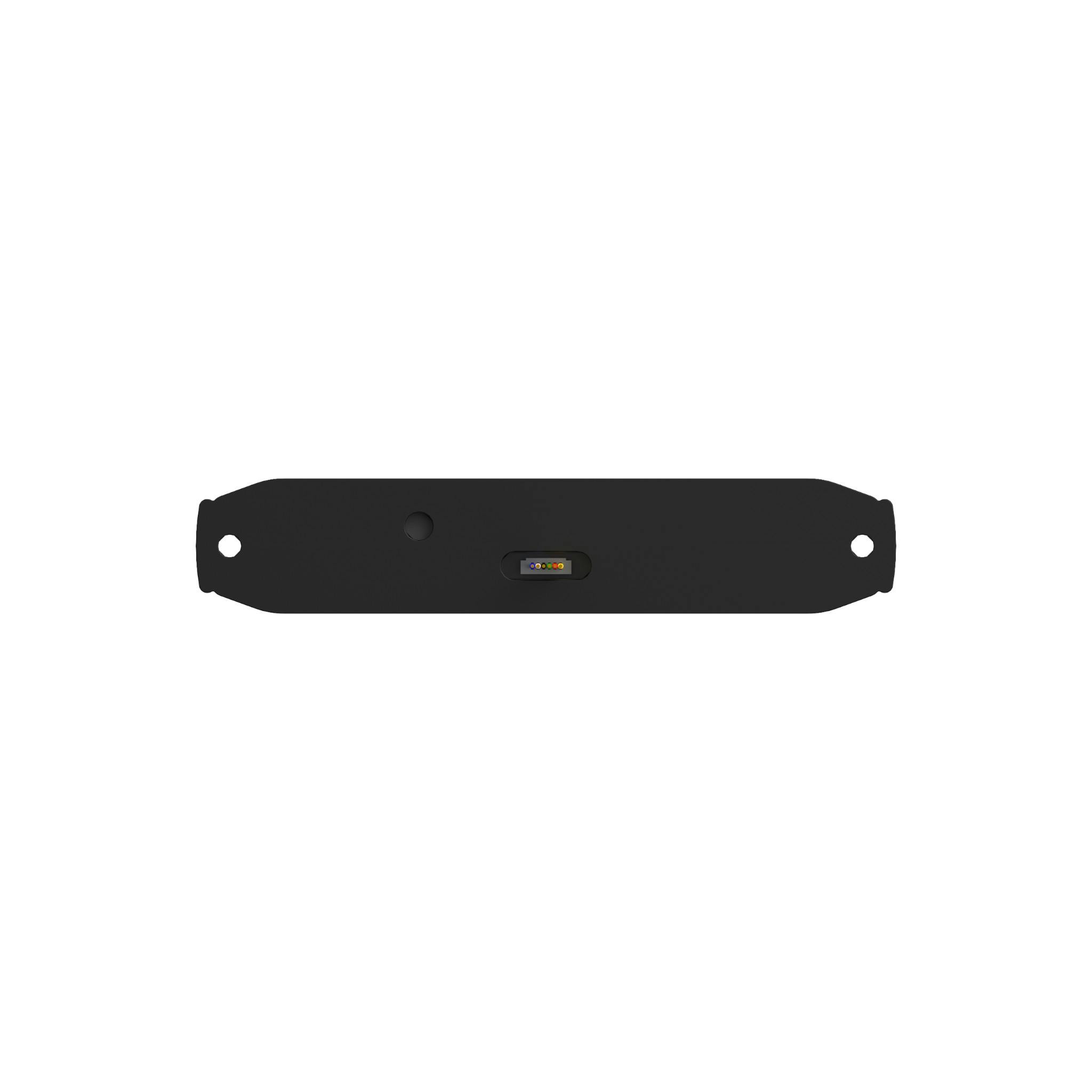

Work Bar Strobe 4, 4" LED Strobe Light, Amber/White (1EA)
- 12 and 24 VDC compatible
- 54 flash patterns
- Multi-unit synchronization in simultaneous or alternating flash
- Low-profile design with aluminum mounting bezel
- Waterproof connectors included
- Compatible with StrobeLink™ Harness
- Weatherproof, IP69K rated
- Meets SAE J595 Class I, California Title 13, ECE R65, and R10 requirements
- 12 high-intensity LEDs behind a proprietary optical lens
- 3 user-programmable modes
- Dual color: Amber and White
Information:
Mounting hardware| Attributes | |
| Bezel Included | Yes |
| Bezel Material | Cast Aluminum |
| California Proposition 65 | No |
| Compliance | SAE J595 CLASS 1, California Title 13, ECE R65, R10 |
| Country of Origin (Primary) | CN |
| Depth | 0.79 |
| Emission Code | Legal US |
| Flash Pattern | 54 |
| GTIN | 00793888979185 |
| Hazardous Material Code | N |
| Height | 0.94 |
| Housing Material | Cast Aluminum |
| IP Rating | IP69K |
| LED Color | Amber/White |
| LED Count | 12 |
| Length | 4.9 |
| Lens Color | Clear |
| Lens Material | PC (Polycarbonate) |
| Life Cycle Status Code | Available to Order |
| Maximum Amperage | 0.9 |
| Maximum Wattage | 9 |
| Mounting Hardware Included | Yes |
| NAFTA Preference Criterion Code | B |
| Operating Temperature | -40 to 149 |
| SDR Required Flag | N |
| Terminal Type | Circular connectors with pig tail |
| User-programmable Modes | 3 |
| VHB Tape Included | Yes |
| Voltage | 12 to 24 |
| Warranty Time | 5 |
| Wire Length | 28 |
| Wire Quantity | 5 |
