Description

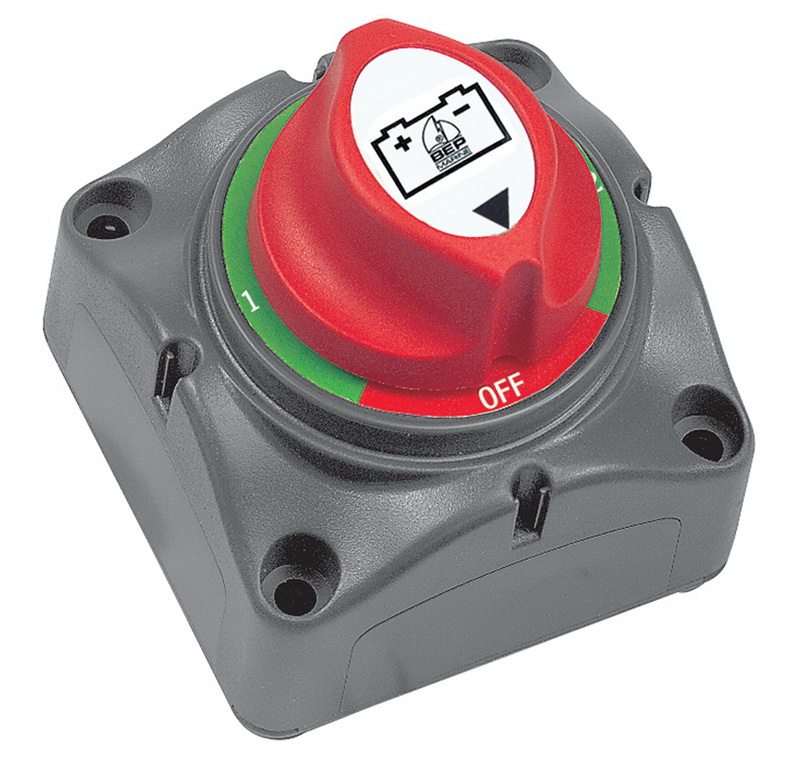

Manufacturer Part Number: 701S

Battery Disconnect Switch; Universal Mount; 48 Volt Dc; Key Type 1-2-Both-Off Switch; 200 Amp Dc Continuous/ 300 Amp Dc Intermittent/ 1000 Amp Dc Cranking; 2-3/4 Inch Length X 2-3/4 Inch Width X 3 Inch Height; With Removable Plates/ Back Cover

Attributes

• Type: Key
• Activation Type: Manual
• Continuous Ampere Rating (A): 200 Amp
• Surge Ampere Rating (A): 1000 Amp
• Base Diameter (IN): Not Applicable
• Installation Type: Screw-On

Product Description

While BEP recommends isolated battery systems as outlined with our distribution clusters, provides a simple economical way of separating two batteries. BEP Marine Battery Switch Test Procedures Continuous, intermittent and Cranking. The test is to determine the maximum current the switch can handle for the stated time, without the rear terminals exceeding 100 degree calicoes above the ambient temperature. The continuous and intermittent ratings are tested at 110 percent of specified ratings. All BEP switches are tested Independently to this specification by a 3rd party laboratory.

Features & Benefits

• Housed In The Same Dimensions As The 701, And Features The Same Removable Side Plates And Back Cover
• Tin-Plated Copper Studs And Nuts
• Ignition-Protected
• Switches Will Not Separate Electronics From Harmful Engine Starting Spikes
• Limited 2 Year Warranty
