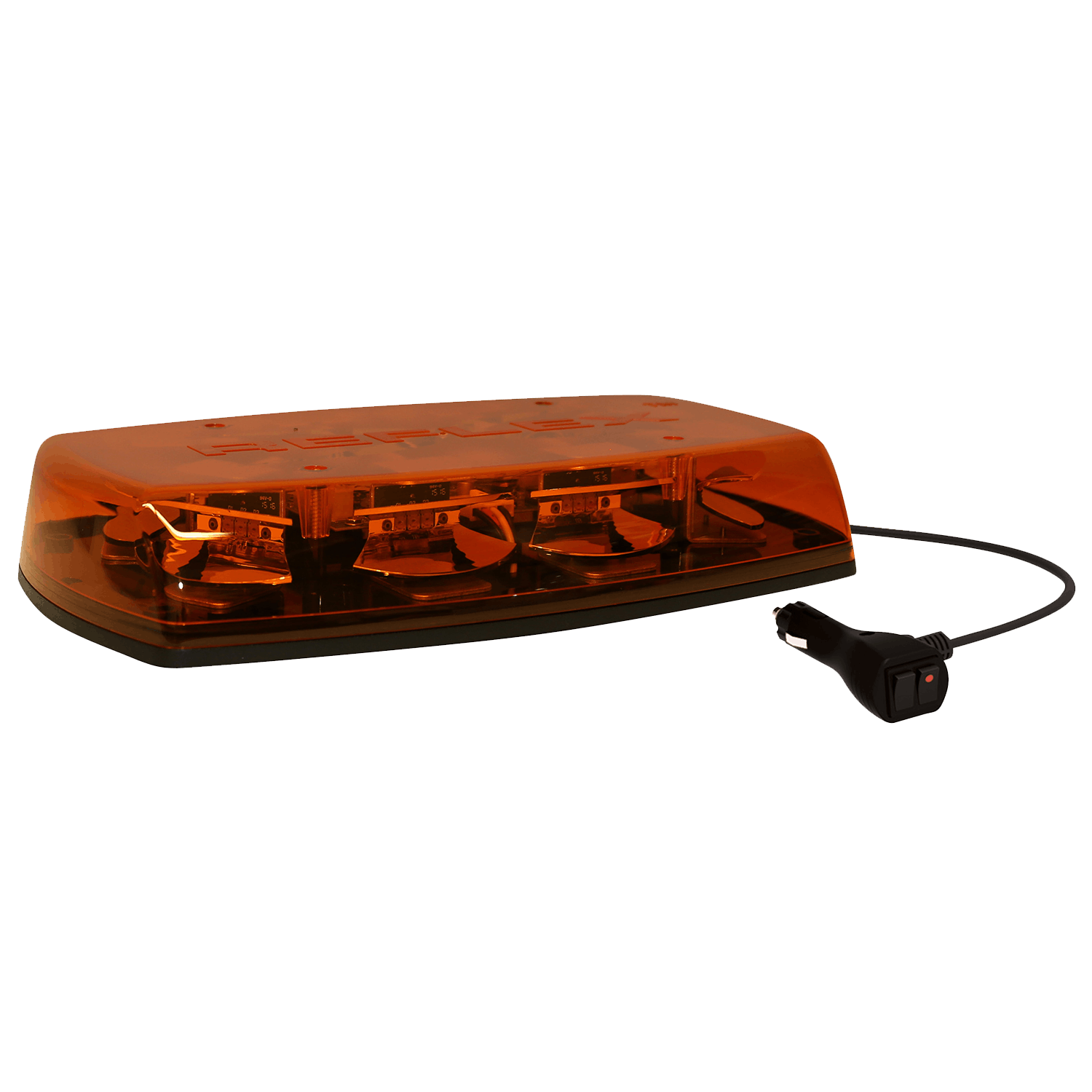

This Reflex 5587 Series LED Minibar (2.5"H x 15"W x 9"D, 5.1 amps) has 8 LED reflector modules, 18 flash patterns, amber single-color illumination, an amber low profile lens, a magnet mount, & a polycarbonate base.

---

The 5587 Series LED minibars provide a compact yet powerful warning solution that offers the flexibility of either permanent, vacuum-magnet or magnet mounting. Featuring 12-24 VDC operation, the Reflex® uses high intensity LEDs and reflective technology to maximize light output. Users can select from 18 flash patterns, either via trigger wire on permanent mount models or cigarette plug switch on magnetic models. Permanent mount models can also be synchronized to operate multiple lights alternately or simultaneously.

• Reflex Series; 2.5"H x 15"W x 9"D; 5.1 amps; 12-24V DC; 18 flash patterns; Amber Lens; Amber Single-Color Illumination; Magnet Mount; Zero Optic Dome; Approval Ratings: SAE Class I, CE, R10; 8 LED reflector modules.

---

Information:

LED Minibar: Reflex Series; 2.5" Height x 15" Width x 9" Depth; 5.1 amps; 12-24V DC; 18 flash patterns; Amber Dome Color; Amber Single-Color Illumination; Magnet Mount; Zero Optic Dome; Approval Ratings: SAE Class I, CE, R10; Eight LED reflector modules, each comprising three LEDs provide high intensity light output; Choice of 18 flash patterns: Quad Flash, Double Flash, Fast Double, Slow Quad, Slow Double, Quint-Hold, Burst, Alternate Quad, Diagonal Quad, Alternate Double, Diagonal Double, Alternate Quint-Hold, Diagonal Quint-Hold, Fast Rotate, Rotate/Quad, Wave Rotate, Random, & Steady On; Polycarbonate base & low profile lens; Temperature Range: -22°F to +122°F (-30°C to + +50°C); Replacement Parts: PN: R5507LA Amber Dome & PN: R5507LC Clear Dome.

Attributes
Category	Automotive Lighting
Emission Code	Legal US
Hazardous Material Code	N
Life Cycle Status Code	Available to Order
Series	LED Minibars
Subcategory	LED Light Bars
Warranty Time	36
