Description

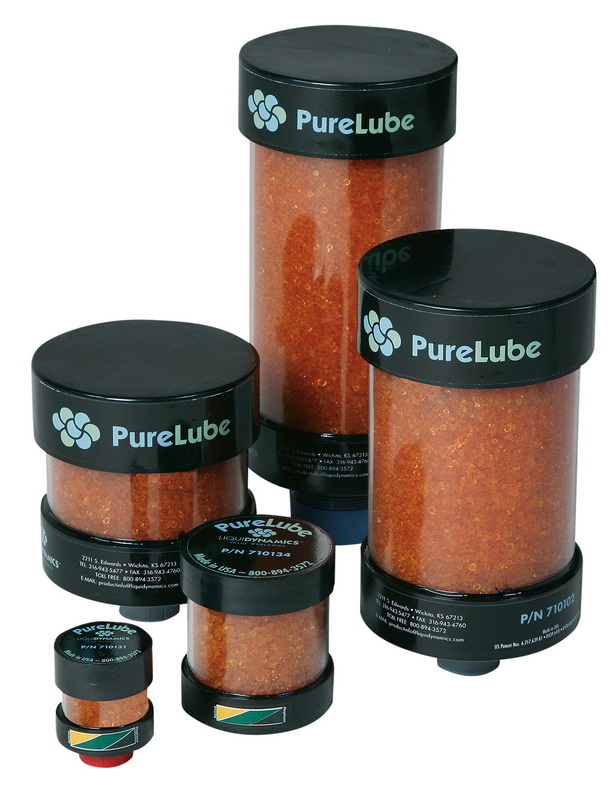

Liquidynamics PureLube desiccant breathers are a unique, patentedair filter and vapor removal system designed to eliminate water, particulateand vapor contamination from entering storage tanks, drums, industrialequipment, transformers and other fluid reservoirs. Silica Gel desiccantadsorbs up to 40% of its weight in water and turns from gold to dark green toindicate when the breather needs to be replaced. Solid contaminants are removedprior to air entering the water adsorbent desiccant section of the filter by atwo micron particulate filter. Another two micron particulate filter at thebottom of the unit prevents any desiccant dust from entering the storagevessel. Additionally, a layer of activated carbon removes oil vapors, fumes andodors as air is expelled from the storage vessel.

These desiccant breathers are available in a variety of shapesand sizes to fit most any application, the most popular sizes are listed below.Additional sizes and designs are available for applications that require largerquantities of desiccant, metal construction or special connections.

P/N 710100

5" diameter, 3.5" tall, 0.2 lb water capacity, 1" Slip Fitting*

P/N 710101

5" diameter, 5" tall, 0.4 lb water capacity, 1" Slip Fitting*

P/N 710102

5" diameter, 8" tall, 0.9 lb water capacity, 1" Slip Fitting*

P/N 710103

Same as P/N 710102 except with NPT fitting

P/N *900424-01

1" female slip x 1" NPTM dapter fitting
